- Supports maximum data transmission rate of 128Kbps
- 16C1050 UART with 256-byte Deep FIFO
- Supports 2-wire and 4-wire RS485 modes
- Jumper pins for RS422/485 toggling
- Supports Hardware and Software flow control
StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART
Dual-profile Plug-in Card - 161050 UART - Universal PCI - PC - 2 x Number of Serial Ports External - 1 - TAA Compliant
Product Details
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PCI2S4851050 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART |
| Marketing Information |

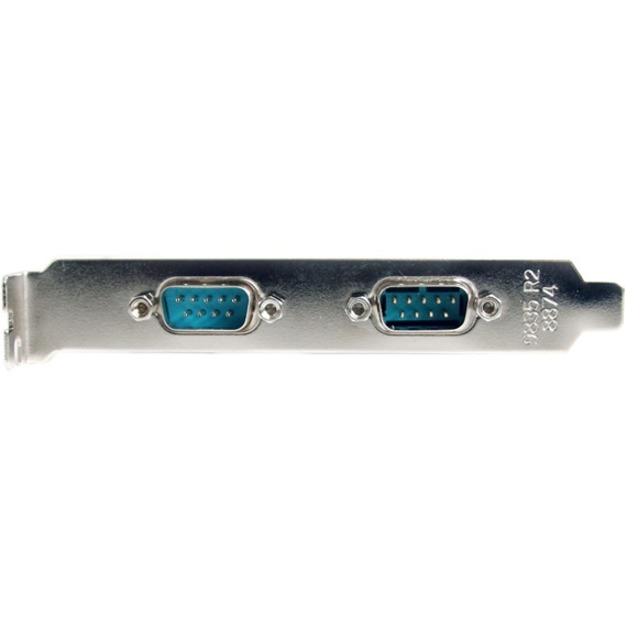

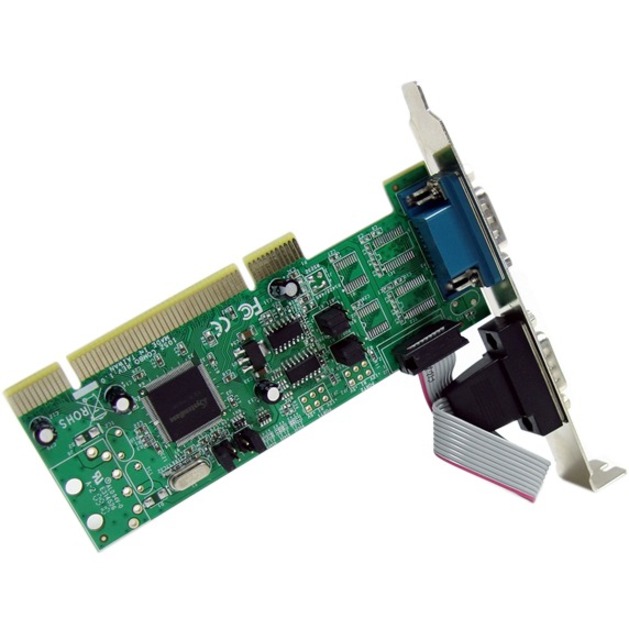

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot. The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU. With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots. Backed by a StarTech.com lifetime warranty and free lifetime technical support. More from the Manufacturer |
| Packaged Quantity | 1 |
| Product Type | Serial Adapter |
Technical Information
| Host Interface | Universal PCI |
| Data Transfer Rate | 128kB/s |
| UART Type | 161050 |
| Platform Supported | PC |
Interfaces/Ports
| Number of Serial Ports (External) | 2 |
Physical Characteristics
| Form Factor | Plug-in Card |
| Card Height | Dual-profile |
| Height | 1.8" |
| Width | 0.6" |
| Length | 4.7" |
| Weight (Approximate) | 2 oz |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
Warranty
| Limited Warranty | Lifetime |
