- Superb audio quality, with high-resolution 7.1 surround sound
- Supports digital optical or analog audio devices through SPDIF or 3.5mm jacks
- All ports fit in standard or small form-factor computers (low-profile brackets included), using the main card plus header bracket
- Supports HD audio, with up to 24-bit and 192KHz playback and recording
- Stereo microphone, line, and SPDIF inputs

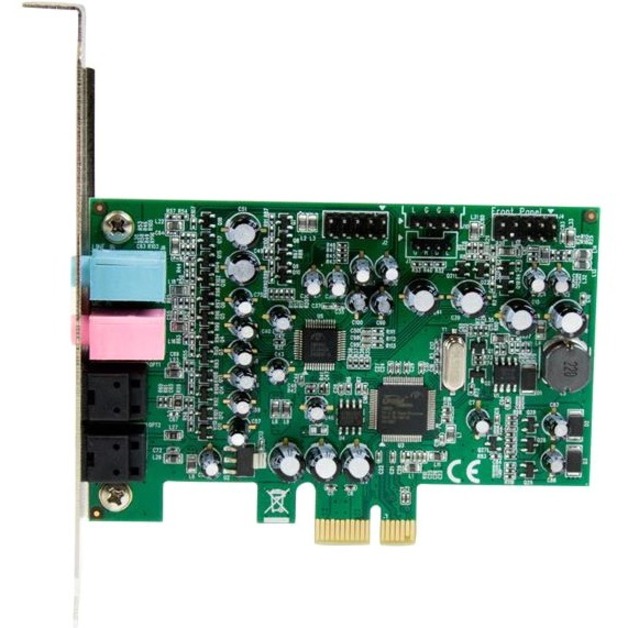

StarTech.com 7.1 Channel Sound Card - PCI Express - 24-bit - 192KHz
7.1 Sound Channels - Internal - C-Media CM8828 - PCI Express x1 - 92 dB - 3 Byte 192 kHz Maximum Playback Sampling Rate - S/PDIF Out - TAA Compliant
Product Details
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEXSOUND7CH |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 7.1 Channel Sound Card - PCI Express - 24-bit - 192KHz |
| Marketing Information |
With this 7.1-channel PCIe sound card, you can create a high-quality home theatre sound system. It offers SPDIF input and output ports which deliver crystal-clear digital optical audio, for the ultimate listening experience. Versatile performance The versatile sound card can be used with a variety of audio devices. And with SPDIF digital optical or 3.5mm analog output, you don't need to worry about the connection types on your devices. You can output digital audio to your optical receiver or DAC, or analog audio to your sound system. With up to 24-bit and 192KHz playback and recording, this 7.1 surround sound adapter card delivers high-definition audio for superb sound quality. Simple installation Unlike typical sound cards, this card is designed to fit in low-profile computers, making it ideal for home theatre personal computers (HTPC). It spans the multiple ports across a main card plus an innovative separate header bracket. The card is configured with standard profile brackets and includes low-profile (half-height) brackets. The 7.1 channel surround sound card is easy to install. It's perfect for anyone looking for a simple solution to upgrade their listening experience, such as music enthusiasts or mixing professionals. Multiple input options For added scalability, you can quickly connect a microphone or other recording devices to your computer through two 3.5mm stereo or SPDIF digital audio input jacks. The PEXSOUND7CH is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer |
| Packaged Quantity | 1 Each |
| Product Type | Sound Board |
Technical Information
| Audio Processor Manufacturer | C-Media |
| Audio Processor Model | CM8828 |
| Host Interface | PCI Express x1 |
| Signal to Noise Ratio (SNR) | 92 dB |
| Maximum Playback Sampling Rate | 3 Byte 192 kHz |
| Sound Channels | 7.1 |
| Platform Supported | PC |
Interfaces/Ports
| S/PDIF Out | Yes |
Physical Characteristics
| Form Factor | Internal |
| Height | 4.7" |
| Width | 0.7" |
| Thickness | 4.3" |
| Weight (Approximate) | 3.70 oz |
Miscellaneous
| Package Contents |
|
| Country of Origin | China |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
Warranty
| Limited Warranty | 2 Year |
