- Supports Hotkey and front panel push-button switching
- Identify and select computers by names assigned via the OSD menu
- OSD security allows each PC to be password protected
- Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
- Supported 4:3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768

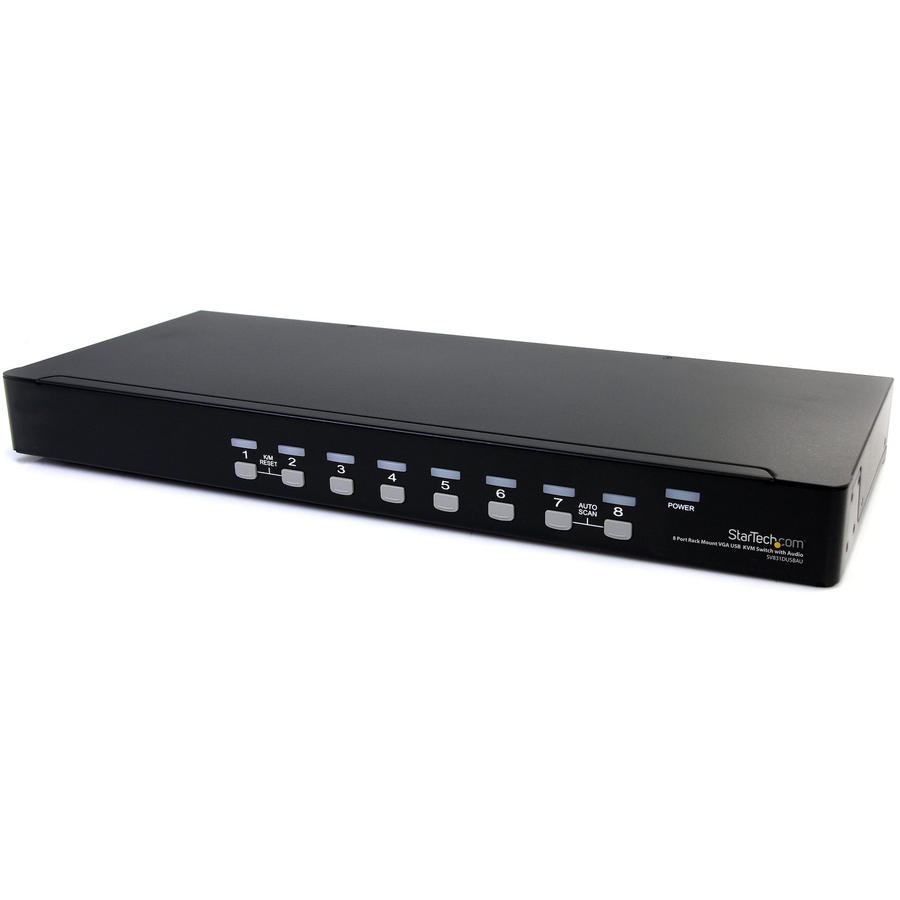

StarTech.com 8 Port Rack Mount USB VGA KVM Switch w/ Audio
8 Computer(s) - 1920 x 1440 - 2 x USB - 9 x VGA - 1U - Rack-mountable, Desktop - TAA Compliant
Product Details
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV831DUSBAU |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Line | StarView |
| Product Name | 8 Port Rack Mount USB VGA KVM Switch w/ Audio |
| Marketing Information |
The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports. Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary. To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support. The SV831DUSBAU onlyworks with specific 2-in-1 VGA and USB cables (soldseparately), a list ofStarTech.com approved cables are below: 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable 15ft Ultra Thin USB VGA 2-in-1 KVM Cable More from the Manufacturer |
| Packaged Quantity | 1 Each |
| Product Type | KVM Switchbox |
Technical Information
| Number of Computers Supported | 8 |
| Daisy Chain Supported | Yes |
Video
| Maximum Video Resolution | 1920 x 1440 |
Interfaces/Ports
| USB | Yes |
| VGA | Yes |
| Number of USB Ports | 2 |
| Number of VGA Ports | 9 |
Power Description
| Input Voltage |
|
| Input Voltage Range | 110V AC to 240V AC |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Form Factor |
|
| Rack Height | 1U |
| Height | 1.8" |
| Width | 21.3" |
| Depth | 7.1" |
| Weight (Approximate) | 5.74 lb |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
Warranty
| Limited Warranty | 3 Year |
