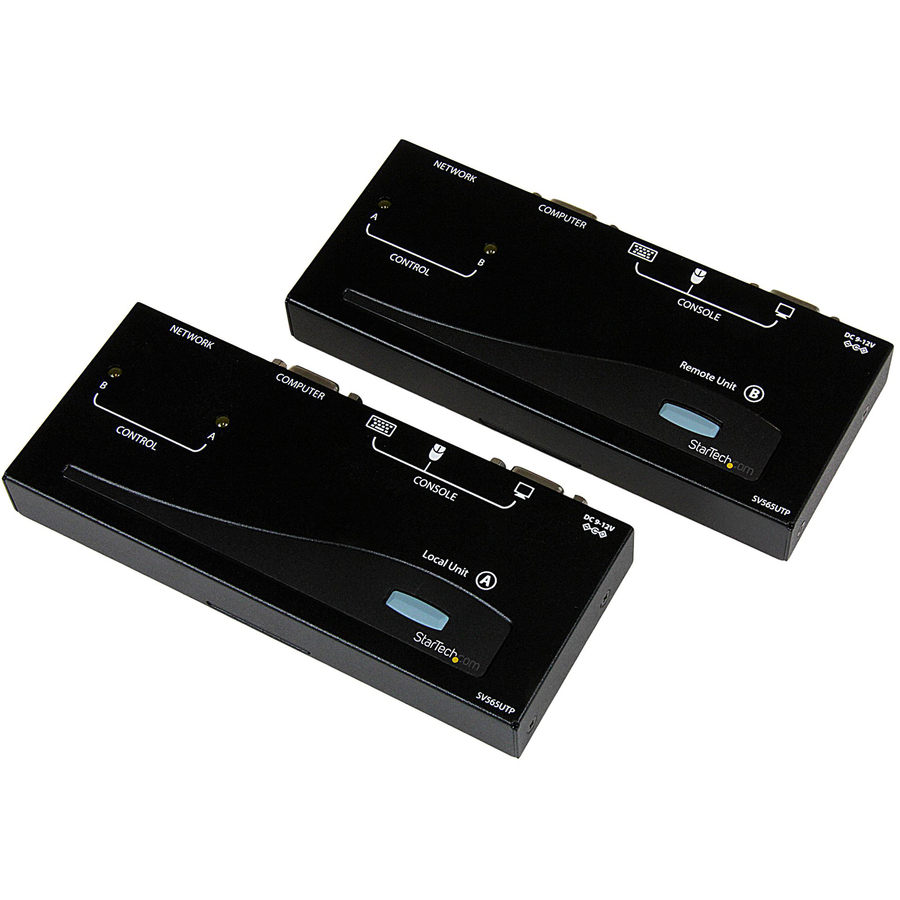

    StarTech.com PS/2 USB KVM Console Extender

    1 Computer(s) - 500 ft Range - VGA - 1024 x 768 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x PS/2 Port - 4 x VGA - 120 V AC, 240 V AC Input Voltage - Desktop - TAA Compliant

    Product Code: STCSV565UTP
    Product Unit: KT1
    Contact customer service to check availability
    Non-Returnable Product
    • Easy installation using industry-standard UTP network cable
    • Can be used with a single computer or connected to an existing KVM switch
    • Supports a max. extension distance of 500 ft (150 m)
    • Supports auto-switching between host and remote users or dedicated control
    • Compatible with USB and PS/2 computers at the host and remote locations (PS/2 keyboard and mouse required for remote console)

Product Details

General Information

Manufacturer StarTech.com
Manufacturer Part Number SV565UTP
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name PS/2 USB KVM Console Extender
Marketing Information

The SV565UTP USB PS2 KVM console extender lets you control a server, computer or multiple computers (connected through KVM switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away.

Use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

For added convenience, the Console/KVM extender supports both USB and PS/2 computer connections, and is compatible with any brand of KVM Switch.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

More from the Manufacturer

More from the Manufacturer
Packaged Quantity 1 Kit
Product Type KVM Console/Extender

Technical Information

Connectivity Technology Wired
KVM Technology Analog
Number of Computers Supported 1
Maximum Operating Distance 500 ft

Video

Graphic Mode VGA
Maximum Video Resolution 1024 x 768

Interfaces/Ports

Network (RJ-45) Yes
PS/2 Port Yes
VGA Yes
Number of VGA Ports 4
Number of Network (RJ-45) Ports 2
Number of PS/2 Ports 4

Power Description

Input Voltage
  • 120 V AC
  • 240 V AC
Input Voltage Range 110V AC to 240V AC
Power Consumption 5.40 W

Physical Characteristics

Color Family Black
Product Color Black
Form Factor Desktop
Transmitter Height 0.80"
Transmitter Width 6.10"
Transmitter Depth 3"
Receiver Height 0.80"
Receiver Width 6.10"
Receiver Depth 3"
Transmitter Weight (Approximate) 1.35 lb
Receiver Weight (Approximate) 1.35 lb

Miscellaneous

Package Contents
  • 1 x Local Unit
  • 1 x Remote Unit
  • 2 x Packs Rubber Feet
  • 2 x Power Adapters
  • 1 x Instruction Manual
Environmentally Friendly Yes
Country of Origin Taiwan
TAA Compliant Yes

Warranty

Limited Warranty 2 Year

Description

Accessories

Alternative Products

We are sorry but no alternatives are currently available, we are working on getting this back in stock as soon as possible.

Additional Documentation

Manufacturer-Brochure
User-Manual
